Building Board Production Line

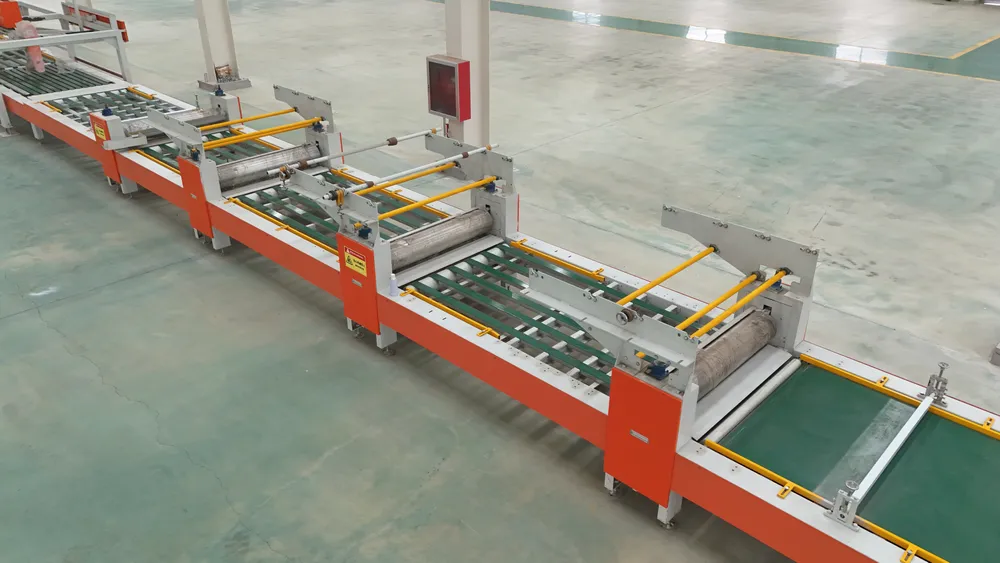

MgO Board Production Line
A complete magnesium oxide board production line for fire-rated, multipurpose, environmentally responsible panels, including sealed batching, forming, curing, demolding, cutting, and sanding systems.
Key Features
Automated water and powder metering for precise recipe control
Automatic demolding, mold cleaning, board loading, cutting, stacking, and edge conveying
Optional waste-board crushing and recycling to reduce raw material costs
PLC automatic control with interconnected full-line operation
Sanding and polishing system for premium sanded MgO board production
Custom stainless-steel and corrosion-resistant configurations available
Technical Parameters
Product thickness
3-25 mm, customizable
Standard size
2440 / 2740 / 3050 x 1220 mm, customizable
Density
800-1200 kg/m3
Fire rating
A1 non-combustible, ISO 1182
Flexural strength
12-30 MPa
Formaldehyde emission
E0 / E1 options
Control system
PLC automatic control
Core raw materials
MgO powder, magnesium sulfate or chloride solution, fiberglass mesh, non-woven fabric, fillers
Delivery period
90-150 days
Main Systems
Feeding, Mixing & Forming
Sealed raw material conveying, pneumatic powder delivery, liquid pumping, one-touch feeding and discharge, and compression molding.
Demolding & Cleaning
Automatic board-mold separation and mold cleaning to reduce adhesion, manual labor, and downtime.
Cutting & Recycling
Automatic edge cutting, sizing, stacking, and optional waste-board crushing for raw material recovery.
Sanding & Finishing
Inline sanding, polishing, thickness control, and automatic board flipping from rough sanding to fine finishing.
Raw Materials
Magnesium oxide powder
Magnesium sulfate solution
Magnesium chloride solution
Fiberglass mesh
Non-woven fabrics
Sawdust, bamboo fiber, perlite fillers
Product Types
Non-woven MgO boardPremium sanded MgO boardMgO floorMgO laminated board
Engineering Advantages
Fireproof and insulation performance up to A1 non-combustible grade
Moisture, mold, termite, and impact resistance
20-30% lighter than many cement-based panels
Asbestos-free, formaldehyde-free, and recyclable board material
