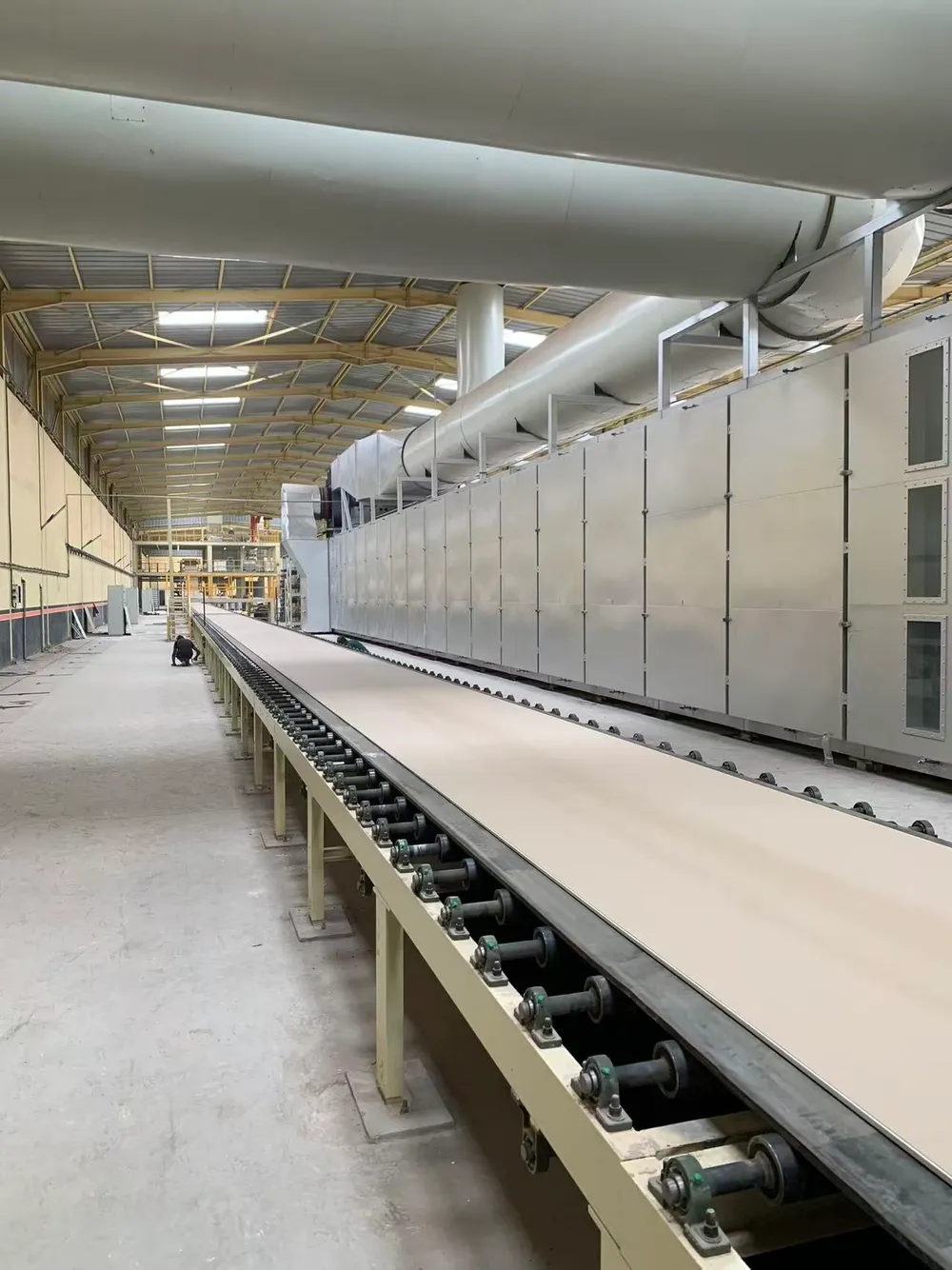

Gypsum Board Production Line
A continuous gypsum board production line from slurry preparation to finished board handling, with belt forming and hot-air or thermal-oil drying systems.
Key Features
Raw material dosing system for precise recipe control
External foaming technology can reduce foaming agent consumption by about 20%
Recipe-linked forming system stabilizes slurry consistency and line speed
Infrared sensor and servo cutting control improve cutting stability
Ethernet-linked forming, cutting, and drying controls reduce length and spacing errors
Cloud-connected PLC data supports online programming, operation, and maintenance
Technical Parameters
Annual capacity
2-30 million m2/year
Working time
24 h/day, 300 days/year
Labor
About 15 workers
Board length
1500-3600 mm
Board width
1200 / 1220 mm
Board thickness
6-25 mm
Common size
2400 x 1200 x 9.5 / 12.5 mm
Drying system
Hot-air or thermal-oil drying
Fuel
Natural gas, coal, diesel, heavy oil, etc.
Delivery period
120-180 days
Main Systems
Raw Material Dosing
Automatic feeding, precise recipe control, stainless-steel contact parts, and reduced corrosion risk.
Forming System
Recipe-linked raw material control, stable slurry consistency, and stainless-steel conveyor rollers.
Cutting Machine
Infrared sensing and multi-stage servo cutter speed control to reduce cutting failures.
Drying & Electrical Control
Energy-saving drying design, Ethernet data linkage, and cloud PLC maintenance capability.
Raw Materials
Building gypsum powder
Face paper
Modified starch
White latex
Foaming agent
Accelerators and retarders
Water reducer
Fiber materials
Product Types
Ordinary gypsum boardWaterproof gypsum boardFireproof gypsum boardPVC laminated gypsum board
