Gypsum Building Material Line

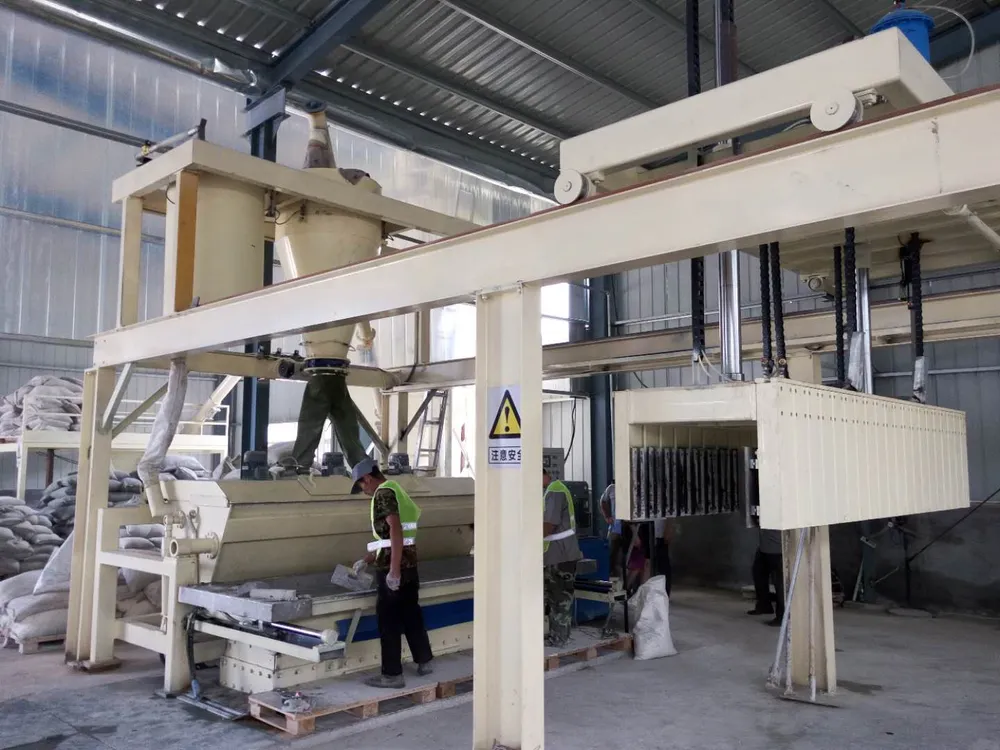

Gypsum Block Production Line
A gypsum block production line for solid or hollow partition blocks, mixing gypsum powder, water, additives, and reinforcement materials into lightweight fire-rated blocks.
Key Features
Simple process, easy operation, compact footprint, and low labor requirement
Flexible design with lower investment and fast return
Supports solid and hollow block products
Produces lightweight, fire-resistant blocks with thermal and sound insulation
Technical Parameters
Raw materials
Gypsum powder and water
Block length
600-800 mm
Block width
<=500 mm
Block thickness
60-200 mm
Type
Solid / hollow
Reference weight
20-22 kg based on 667 x 500 x 120 mm
Compressive strength
>=8.0 MPa
Breaking load
Average >=4500 N
Delivery period
60-120 days
Engineering Advantages
Fire resistance, thermal insulation, sound insulation, water resistance, and light weight
Easy and fast installation for partition wall applications
Environmentally responsible product with low drying shrinkage and controlled radioactivity
Reference Cases
KSA, Azerbaijan, Iran, Russia
International project references for gypsum block production lines.
China project references
Anhui 500,000 m2/year, Hubei 200,000 m2/year, Gansu 2 million m2/year, multiple Shandong projects, Yunnan 500,000 m2/year, Sichuan 1 million m2/year.
