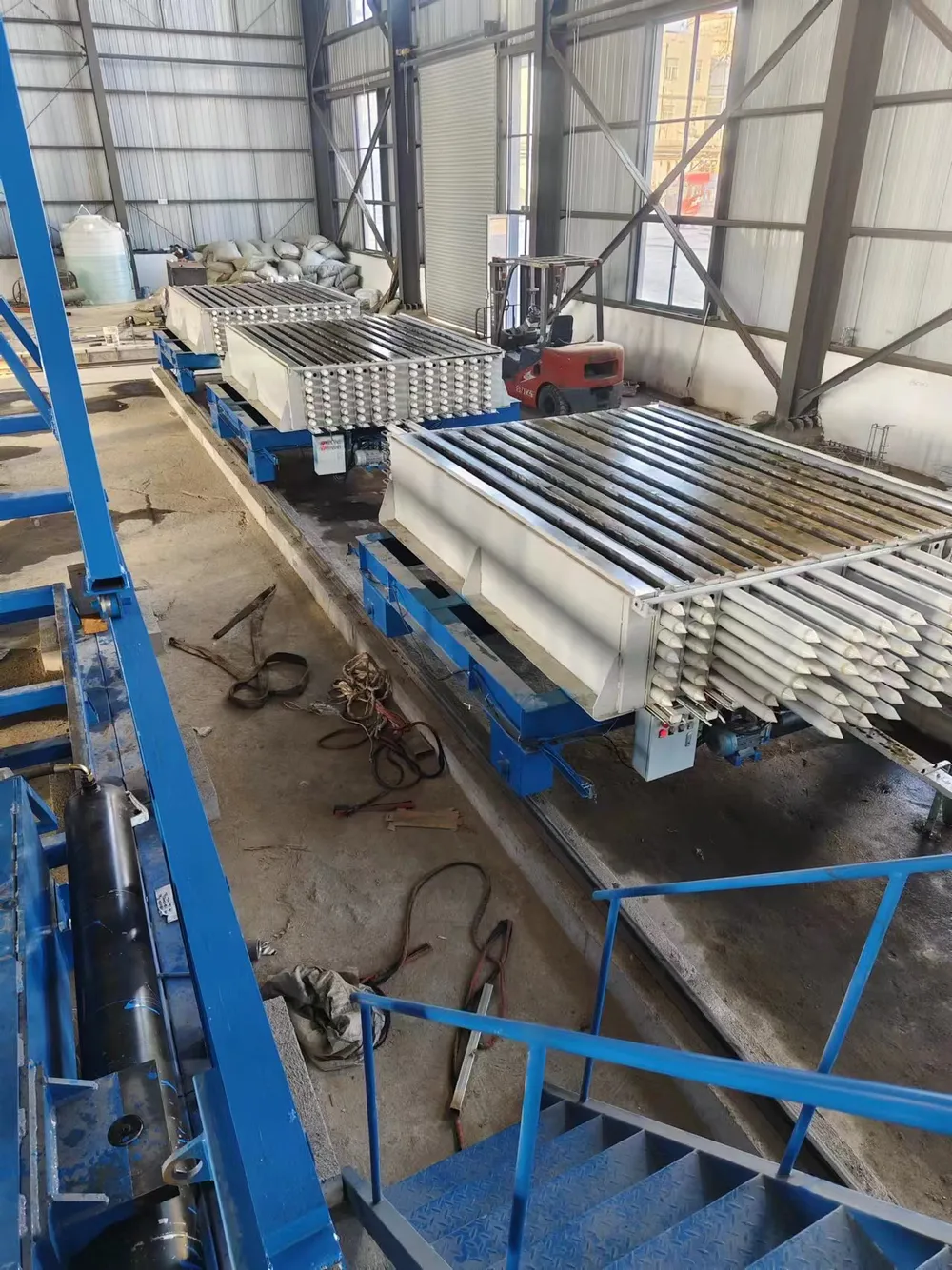

Lightweight Wall Panel Production Line

A lightweight concrete wall panel line with batching, mixing, EPS foaming, vertical or horizontal mold cars, unloading, and raw material silo systems.

Request a Quote Email Sales
Lightweight Wall Panel Production Line

Key Features

Vertical mold cars for composite and solid wall panels
Horizontal mold cars for sandwich, solid, and hollow core wall panels
Precision batching platform and mixer for consistent wall panel quality
EPS forming equipment for lightweight insulation materials
Unloading equipment removes formed panels from the mold cars
Supports cement, gypsum, MgO, fly ash, EPS, perlite, ceramsite, and other local raw materials

Technical Parameters

Panel length
2400-3600 mm customizable
Panel width
600 / 610 mm
Panel thickness
90-200 mm, common 100 / 120 / 150 mm
Process options
Vertical mold car or horizontal mold car
Panel types
Sandwich, composite, solid, and hollow core wall panels
Delivery period
60-120 days

Main Systems

Batching Platform

Mixes raw materials in precise proportions for stable wallboard quality and performance.

Mixer

Mixes cement, sand, fly ash, gypsum powder, MgO, and other recipe materials.

Mould Car

Vertical and horizontal mold car options support different wall panel types.

EPS Forming & Silo

EPS foaming equipment and raw material silos support lightweight aggregate supply.

Unloading Equipment

Removes formed wall panels from the mold car for efficient production flow.

Raw Materials

Cement, gypsum powder, MgO + MgCl2/MgSO4, fly ash
Sand below 3 mm
EPS particles, ceramsite, pumice, perlite, tire particles, construction waste, rice husks
Additives and air-entraining agents
Fiberglass cloth, steel wire mesh, palm fiber
Calcium silicate or fiber cement surface board

Engineering Advantages

Lightweight panels reduce building load and improve construction efficiency
Fire and moisture resistance improve building safety and durability
Thermal and sound insulation improve indoor comfort
Stable structure, crack resistance, green material options, and easy maintenance

Reference Cases

Mexico Project

Purchased in 2019, sandwich wall panel line, grid mold car, frame crane discharge, 300,000 sqm/year design capacity, about 1,700 sqm workshop.

Ecuador - Guayaquil

Visited in 2017 and purchased in 2018, sandwich and solid wall panels, vertical dual-use mold car, 500,000 sqm/year design capacity.

Qatar - Doha

Expanded from 100,000 sqm initial capacity to 1,000,000 sqm/year using multiple wall panel lines.
